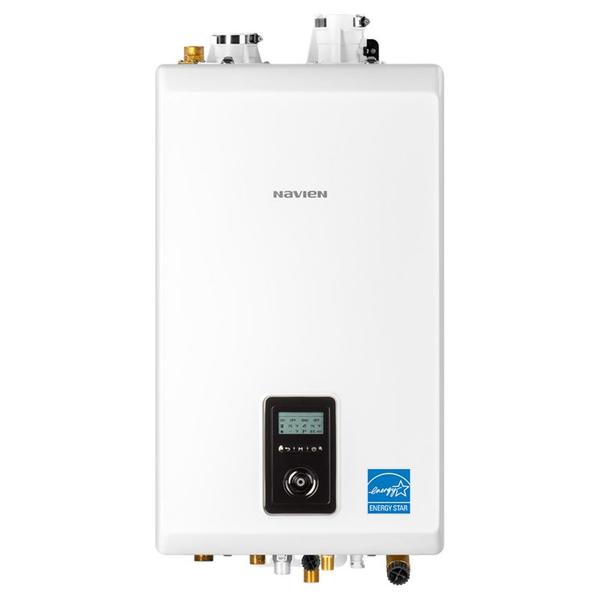

NCB-190/060H – Condensing Combi-Boiler – 160,000 BTU DHW / 60,000 BTU HTG

Navien NCB-190/060H – Condensing Combi-Boiler – 160,000 BTU DHW / 60,000 BTU HTG

The Navien NCB-190/060H is a high-efficiency condensing combi-boiler that delivers both space heating and domestic hot water in one compact unit. With a 95% AFUE rating and a 15:1 turndown ratio for DHW, this boiler provides precise performance and significant energy savings. It features dual stainless steel heat exchangers, built-in controls, and flexible venting options. The unit is field convertible for use with natural gas or propane and is suitable for small to large homes, capable of supporting up to three showers and a dishwasher simultaneously.

DHW Input: 10,000 to 160,000 BTU/hr Heating Input: 60,000 BTU/hr AFUE: 95% Flow Rate: 4.1 GPM at 70°F rise Venting: 2" up to 65 ft or 3" up to 150 ft (PVC, CPVC, or polypropylene) Dimensions: 17.3" W x 12.8" D x 29.3" H Weight: 88.2 lbs Gas Type: Field convertible (natural gas or propane) Controls: LCD display with Setup Wizard Built-in: Pumps and connections for 3 zone pumps and 3 zone valves Applications:

Space heating and domestic hot water for residential homes Compatible with cascade and common venting configurations using NPE water heaters Aim high with Navien… High efficiency, High output, High performance, all in one compact combi Highest DHW maximum BTU's in residential combi-boilers…up to 210,000 per hour Highest DHW flow rate @ 70°F rise…up to 5.4 GPM Highest number of BTU sizes for the North American residential combi-boiler market Highest residential combi DHW TDR…15:1 for all models Highest residential combi heating TDR… up to 11:1 Highest number of built-in zone controls for valves or pumps… up to three Highest full lineup 2" PVC venting lengths… up to 65 feet Highest number of cascade capable units with NPE tankless water heaters… up to 15 High altitude certification… up to 10,100 feet (NG or LP) Lowest minimum fire BTU for residential combi-boilers… as low as 10,700 New Navien NCB-H… the complete combi package and no comprimises Navien's innovation and technological advancements have done it again. The new NCB-H is taking combi performance to the highest levels. As the competition tries to get closer, Navien ingenuity keeps advancing their lead.

COMPARE these advantages and see why NCB-H combis are the right fit for small and large homes

Dual stainless steel heat exchangers for heating

Durable stainless steel heat exchangers resist corrosion, resulting in longer life and improved heat recovery from flue gases for superior efficiency.

Up to 5.4 GPM @ 70°F temperature rise for DHW

Separate stainless steel flat plate heat exchanger for DHW creates the lightest flow rates for any combi-boiler in the industry.

Dual Venturi and field gas convertibility

Dual Venturi system creates better combustion control and turndown ratio. Orifice conversion kit for easy field gas convertibility from NG to LP is included with every NCB-H Series combi-boiler.

Easy access to DHW module and valves

All components of DHW module including water feed valve, flow adjustment valve, mixing valve and 3-way valve are right behind circuit board for easy serviceability.

Installations in or near media rooms, recreation rooms or any living areas of the house are possible with the quiet running NCB-H combi-boilers.

TDR 15:1 for DHW and up to 11:1 for heating

The sophisticated gas flow control system provides a high turndown ratio, reducing energy waste and excessive boiler cycling and enhances temperature control for DHW.

Dual Stainless Steel Heat Exchanger Designed for exceptional heating performance and longevity Heating up to 150,000 BTUs per hour Built-in DHW module now with

Navien's NCB-H generates enough hot water to run up to 3 showers and a dishwasher at the same time.

Expanded DHW Capability For increased domestic hot water flow demand, the NCB-H can be cascaded and common vented with up to 15 NPE tankless water heaters

Specification
